Screens show color differently. Before you order, we bring physical ProVia samples to your home so you can see them in your own light.
All 27 CedarMAX Colors
About ProVia CedarMAX® Siding

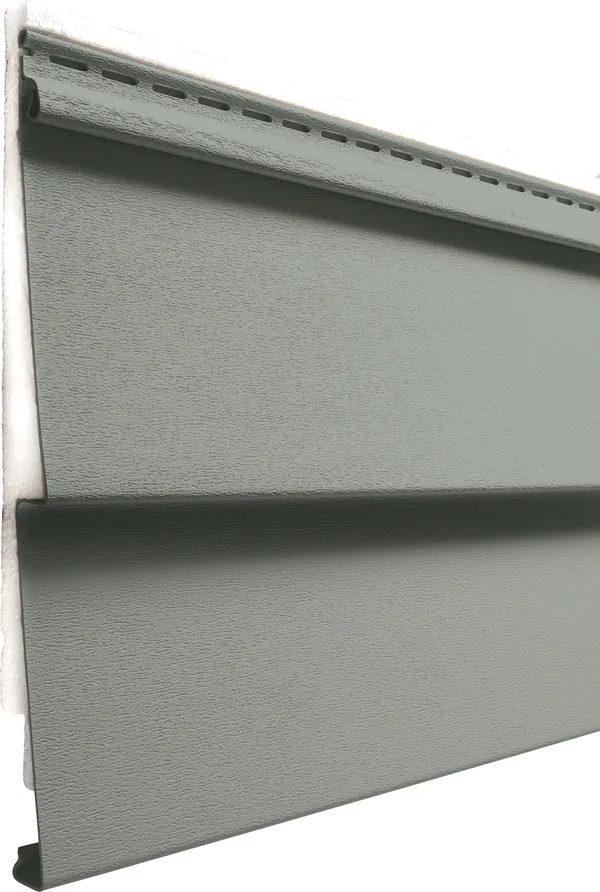

CedarMAX is the ProVia line we point homeowners to when a wall needs to do more than look good. Every panel is bonded to a contoured rigid EPS foam backer, so the siding sits tight to the wall instead of floating over a hollow gap. That foam adds a continuous layer of insulation across the studs, where the fiberglass inside your walls can’t reach, and it gives the panel a deep 1-1/8″ projection with strong shadow lines.
For Midwest homes that see hail in spring, humid 90-degree summers and January wind across open ground, that backing earns its keep. ProVia rates foam-backed CedarMAX at about five times the impact resistance of the same siding without insulation. The lap profiles are rated for 160 mph winds and the 8″ board and batten for 179 mph (ASD), and the foam carries PREVENTOL® TM3 termite protection.
CedarMAX is offered in all 27 ProVia siding colors across the Lifestyle and Signature Collections, every one with a cedar woodgrain texture. Click any swatch below and the selector at the top shows the close-up color plus a real home finished in it.
CedarMAX Profiles
| Profile | Thickness | Panel length | Notes |
|---|---|---|---|
| Single 7″ Lap | .050″ | 16′ 2½″ | R-2.3 insulated |
| Double 6″ Lap | .050″ | 12′ 6″ & 16′ 2½″ | R-2.4 insulated |
| Triple 4″ Dutch Lap | .046″ | 16′ 2½″ | R-2.8 insulated |
| 8″ Board ’N Batten | — | — | 179 mph wind rating, 77.7 psf |
| 12″ Board ’N Batten | — | — | 10″ board + 2″ batten, White only |
Color availability: The 12″ CedarMAX Board ’N Batten is made in White only. All other CedarMAX profiles are offered in the full 27-color palette.
What’s Built Into CedarMAX
- Rigid EPS foam backing with PREVENTOL® TM3 termite protection
- 1-1/8″ overall panel projection
- Twister Lock and Cyclonic Locking System
- Double-ply nailing hem and high-tension structural return
- Drop guard that keeps panels seated in the lock during install
- Lifetime Limited Warranty from ProVia

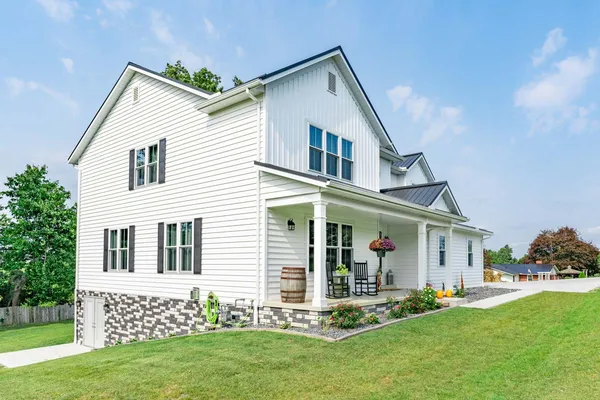

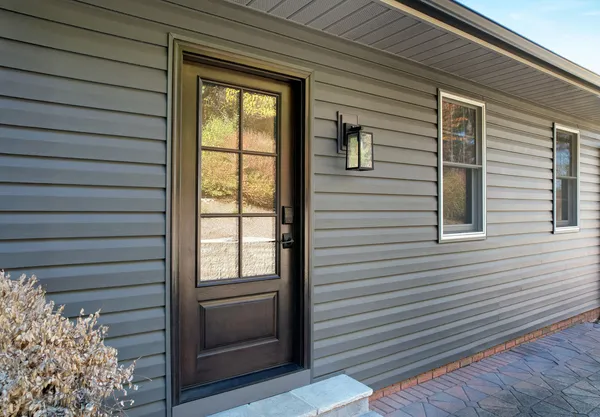

CedarMAX Siding on Real Homes
See How ProVia Siding Is Made
How CedarMAX Insulated Vinyl Siding Is Made
ProVia Super Polymer Siding: Weather Resistance and Color Retention
Videos produced by ProVia, the manufacturer.
CedarMAX Siding Questions
Is insulated vinyl siding worth it for a Missouri or Kansas home?
It is when the wall is the weak point. Foam-backed siding stops heat from leaking through the studs, stiffens the panel against hail and wind, and quiets the house. On older homes with little wall insulation it is usually the single biggest comfort upgrade you can make from the outside.
What R-value does CedarMAX add?
ProVia lists R-2.3 for the Single 7″ lap, R-2.4 for the Double 6″ lap and R-2.8 for the Triple 4″ Dutch lap. That is added on top of the insulation already inside your walls, and it covers the studs, which cavity insulation cannot.
Can CedarMAX be combined with board and batten or shake?

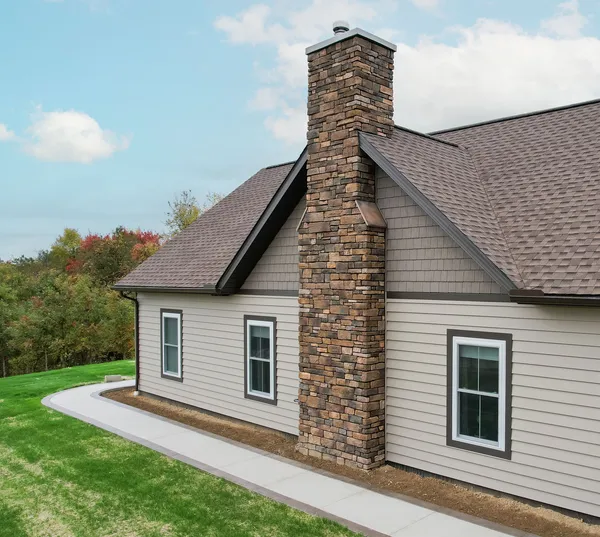

Yes. CedarMAX makes its own 8″ and 12″ board and batten, and both lap profiles pair with Harbor Mill shake and shingle or manufactured stone for gables, porches and dormers.
Which CedarMAX colors come in the 12″ board and batten?
Only White. If you want wide vertical siding in a color, the 8″ CedarMAX Board ’N Batten is offered across the palette.
Found a color you like?
John Beal Roofing is a family-owned exterior contractor serving St. Louis, Kansas City and the Midwest. We measure your walls, bring real ProVia samples to your house, and give you a written siding price. Hail or wind damage? We can also help with the insurance claim.
